NOTE: CLICK ON ENGLISH AFTER OPENING PRINTER UTILITY.

Step 1: Open Printer Utility.

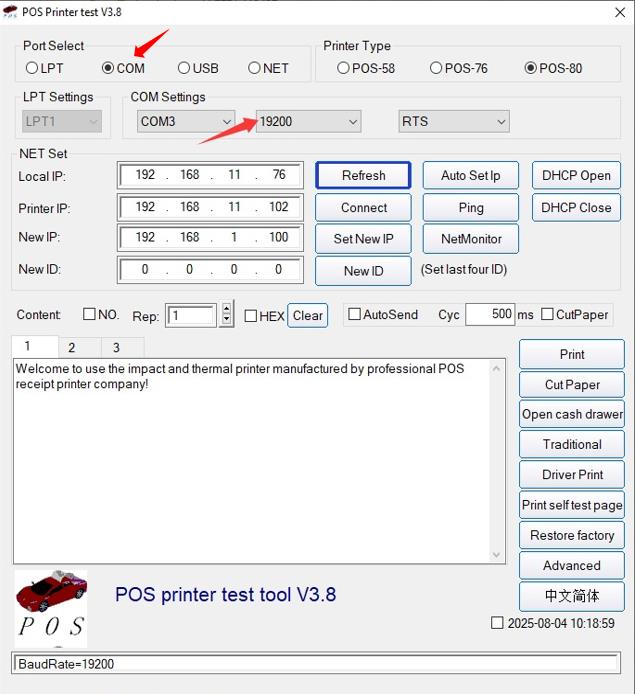

PRINTER SETTINGS ON COM:

1. Select Baud Rate to 19200 & printer type COM from X printer’s utility.
2. Select COM Port, EG# COM1, COM3.

PRINTER SETTINGS ON USB:

1. Select printer type USB fromX printer’s utility.

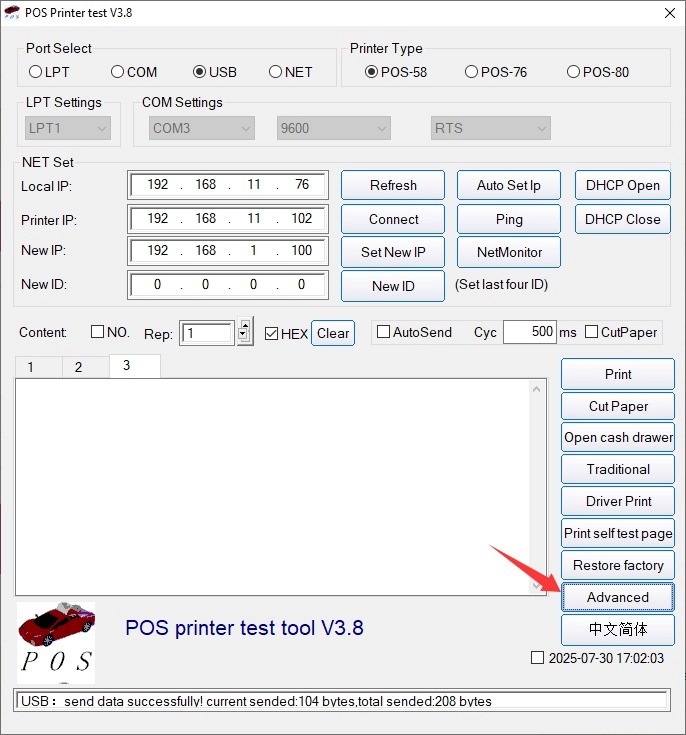

Step 2: Click on Advanced.

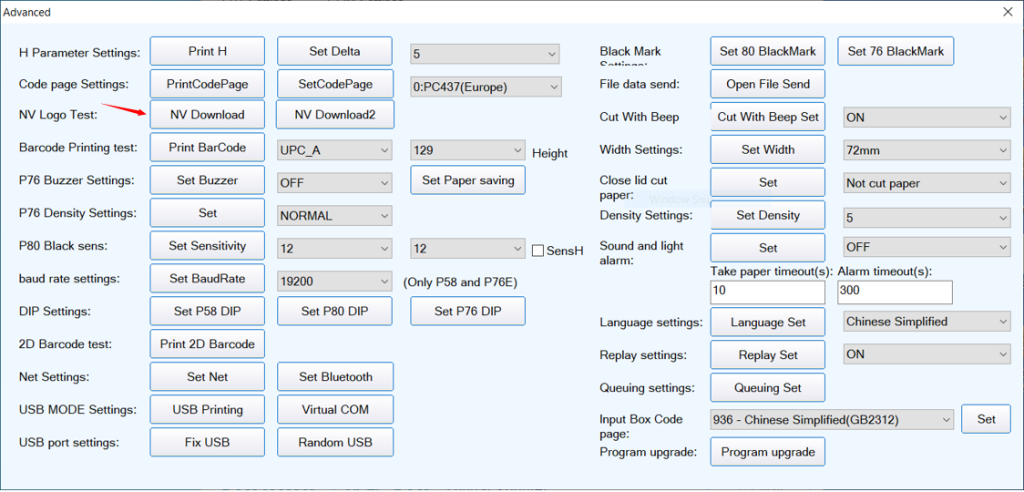

Step 3: Click on NV Download against NV Logo Test.

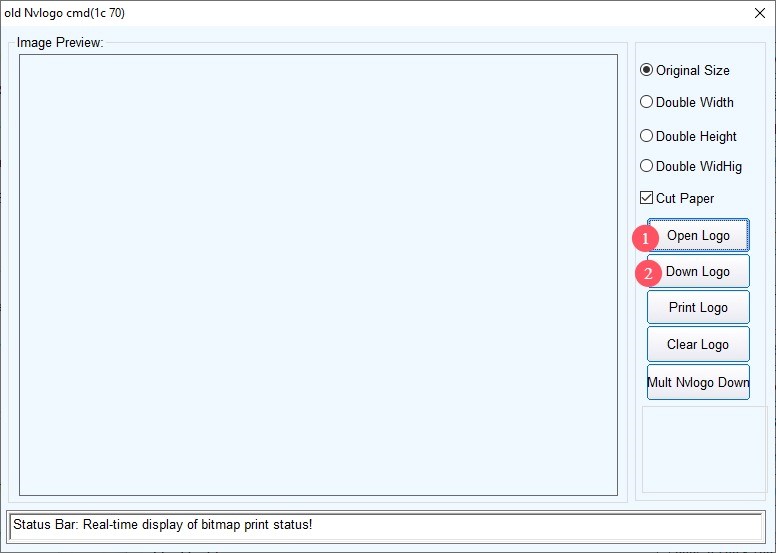

Step 4: Click on Open logo to select logo from system, logo must be in .bmp format.

Step 5: Click on Download logo to import logo in printer.

STEPS TO ENABLE LOGO PRINT ON RECEIPT

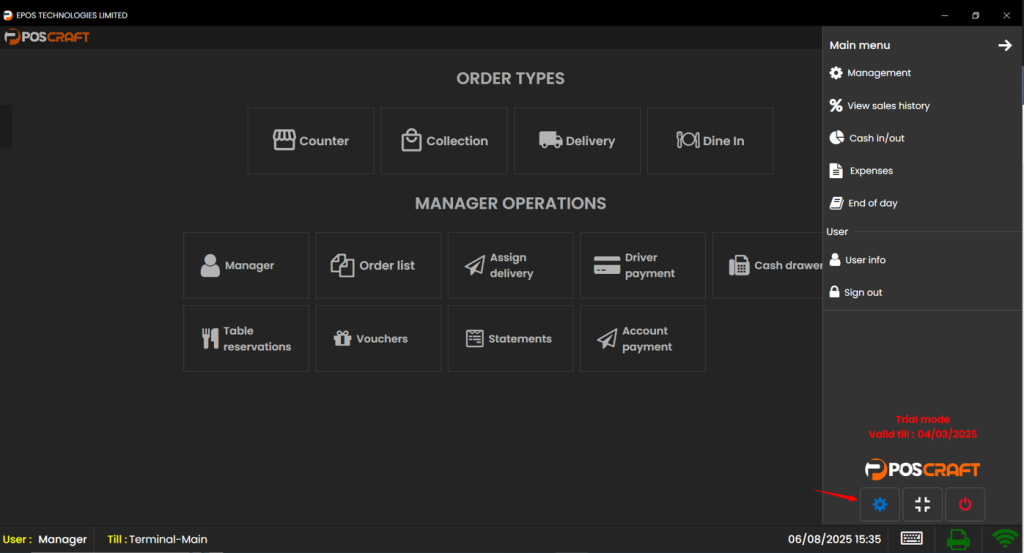

Step 1: Go to settings and click Terminal Settings.

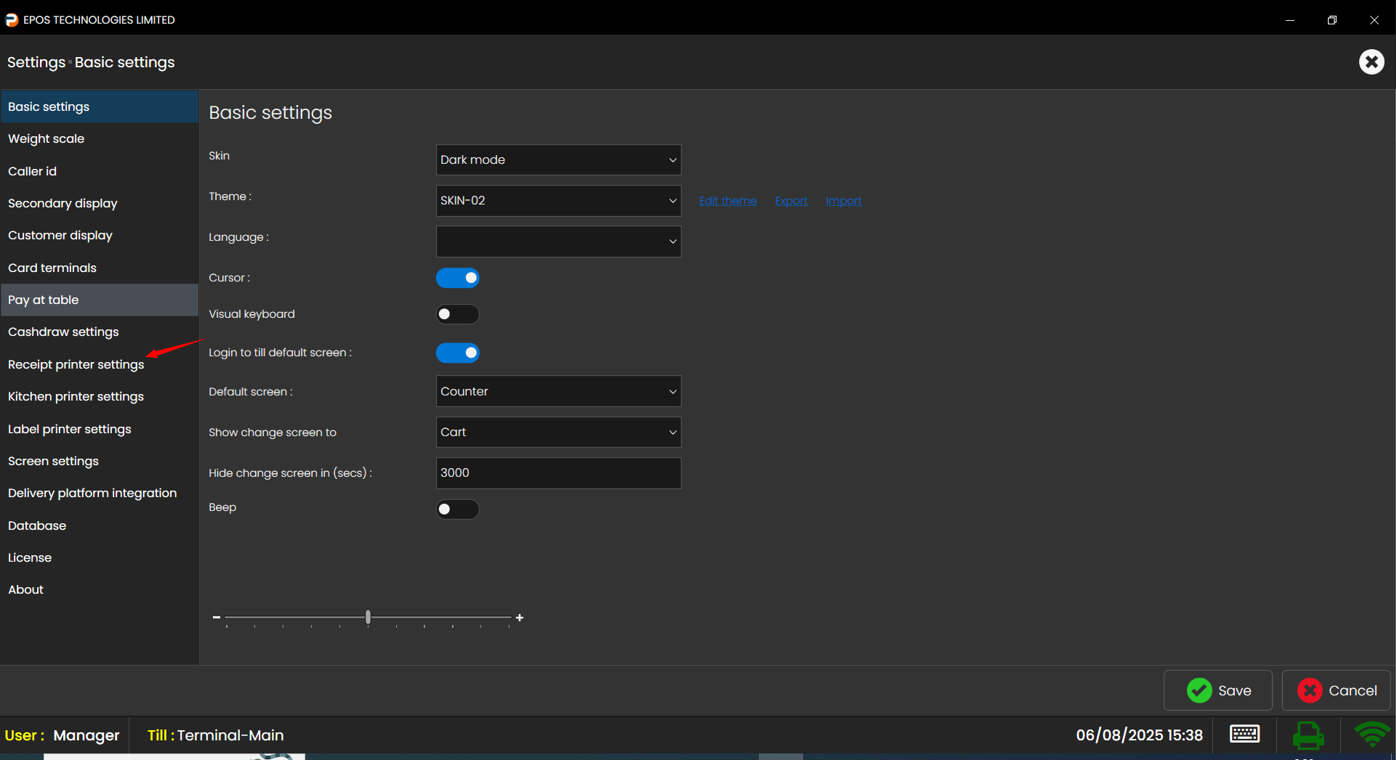

Step 2: Select Receipt Printer Settings.

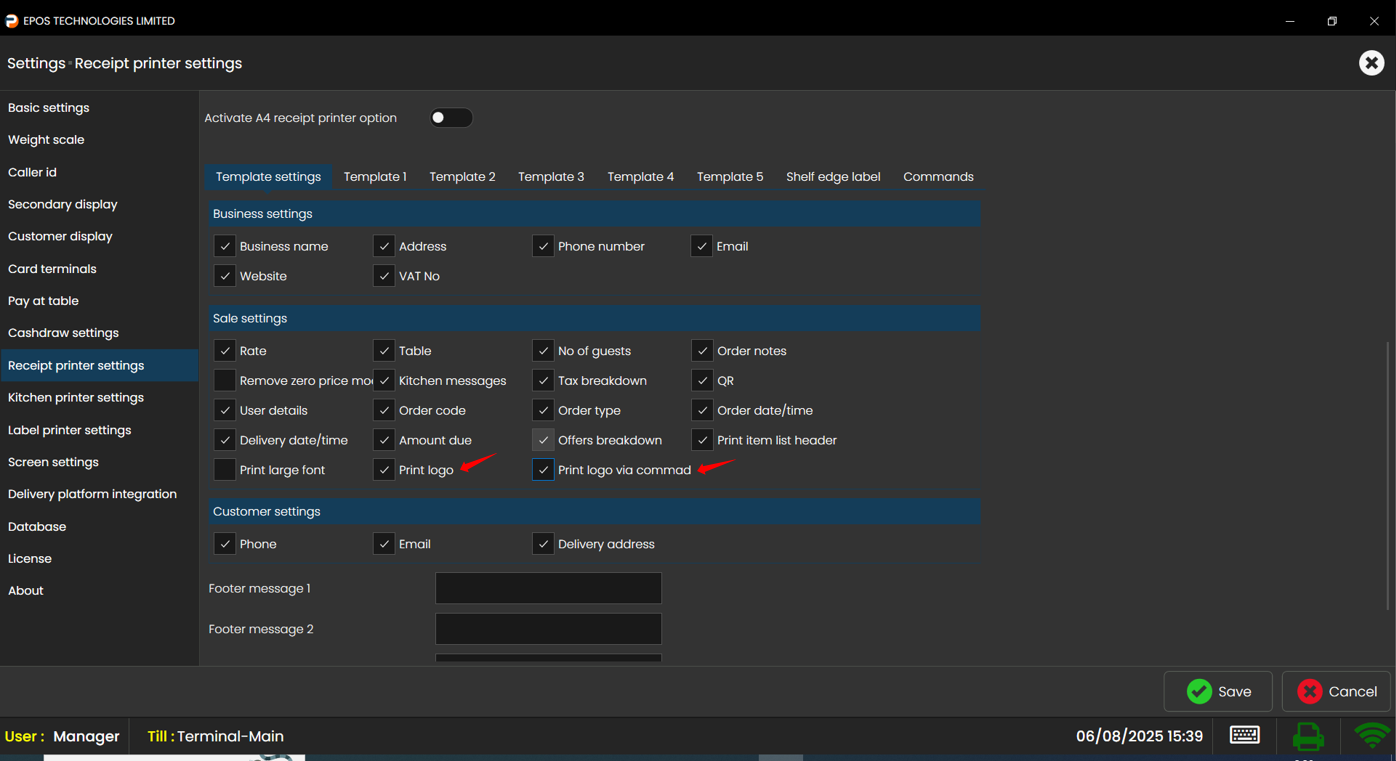

Step 3: Scroll a bit and in Sale Settings Check Print Logo & Print Logo via Command boxes & save settings.

SETTING DONE NOW YOU CAN TEST LOGO PRINTING.
