To integrate your card reader to your till
The till & the card reader have to be on the same network (like printers).

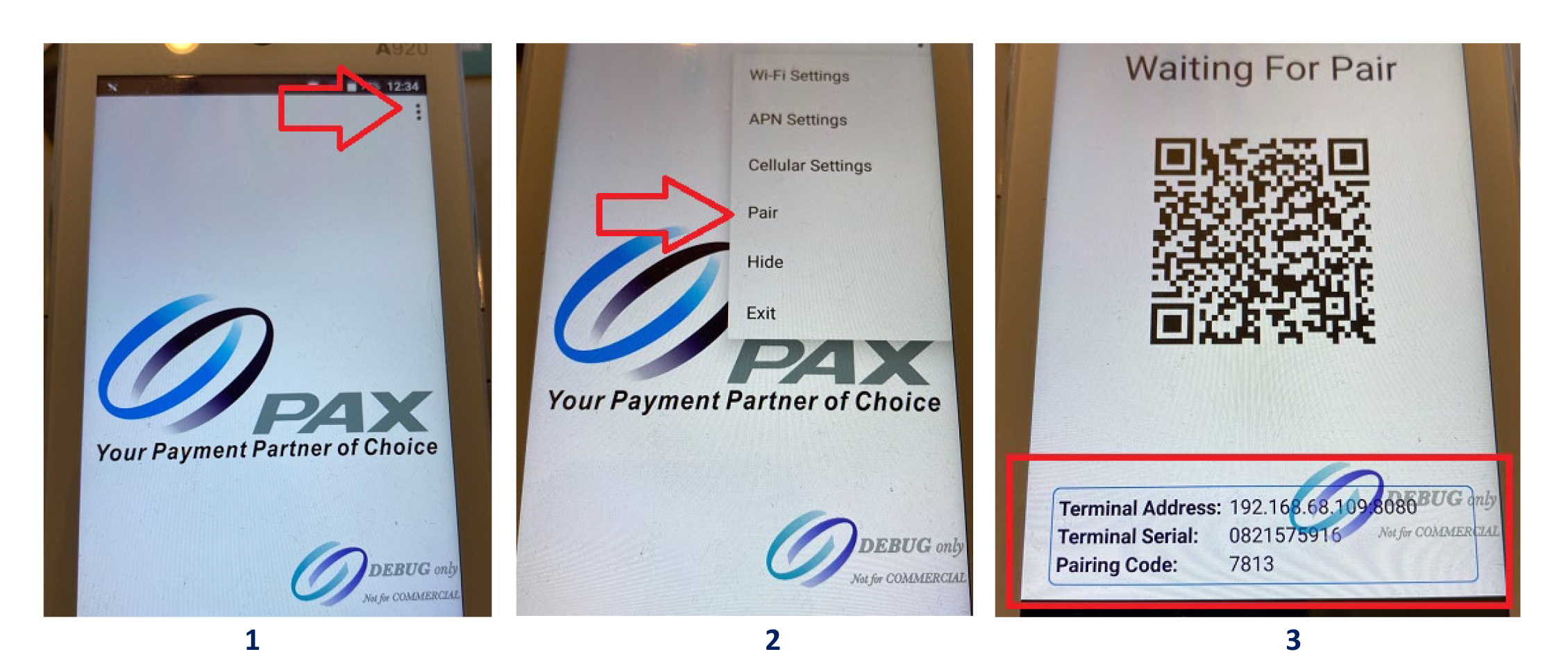

On the PAXA920 Pro > Go to Weblink & follow the steps below to gather the info required to Pair onto the Till.
1. Click on the 3 dots top right
2. Click on Pair
3. Copy the info into the three fields on the Imin / Sunmi device. The pairing code will only last a certain
amount of time before it times out
For optimal performance
Configure your card machine with the following settings:
- Disable Sleep Mode:
Navigate to the payment application & go to:
Menu > Settings > System or Device Settings > Power Management > Set sleep mode to Never. - Turn Off Receipt Printing:
In the payment application:
Menu > Enter User/Pass > Settings > Printer Settings > Set Print to Screen to On, then save changes. - Ensure the Device Stays on the Weblink Screen for Payments:
While in the payment application, simply select Weblink. - Setup Static ip on device
Call card machine support team to connect & assign static ip rometly.
If it’s not possible then reserve device ip via mac address from router (in that case need router admin username & password)
